What is a Tree in Data Structure?

A tree data structure is a collection of nodes connected by edges. Each node contains a value or data which may or may not have a child node. The first node of the tree is called the root. If this root node is connected with another node, then this root is called the parent node, and the node connected to it is the child node.

When operations are performed in a linear data structure, the complexity rises as the data size increases. On the other hand, the tree data structure provides much quicker access to the data, which is non-linear. Let’s understand some of the terminologies associated with it.

Recommended online courses

Best-suited Data Structures and Algorithms courses for you

Learn Data Structures and Algorithms with these high-rated online courses

– / –
4 months
– / –
16 weeks
Free
– / –
– / –
– / –
– / –
6 months
– / –
4 months
– / –
8 weeks
β‚Ή4.24 K
6 weeks
– / –
12 weeks
– / –
4 weeks

Tree Data Structure Terminologies

Terminology Description Example from Diagram
Node Each vertex of a tree is a node. β€˜1’, β€˜2’, β€˜3’ are the node in the tree.
Root Topmost node of a tree. Node β€˜1’ is the topmost root node.
Parent Node The node has an edge-sharing to a child node. Node β€˜2’ is the parent of β€˜5’ and β€˜6’, and Node β€˜3’ is the parent of β€˜7’.
Child Node The sub-node of a parent node is the child node. β€˜5’ and β€˜6’ is the children of β€˜2’.
Leaf The last node which have any subnode is the leaf node. β€˜5’, β€˜6’, β€˜9’ and β€˜8’ are leaf nodes.
Edge Connecting link between two nodes. The link between β€˜1’ and β€˜2’, β€˜2’ and β€˜5’, β€˜2’ and β€˜6’ are edges
Siblings Nodes with the same parent are siblings. β€˜5’ and β€˜6’ are siblings with β€˜2’ as their parent.
Height The height of a tree is the length of the longest path from the root to a leaf node. It is calculated with the total number of edges. The height of β€˜1’ is 3. (longest path is 1-3-7-9)
Depth The number of edges from the root node to that node is called the Depth of that node.
Depth of a tree = Height of tree – 1
The depth of root node β€˜1’ is the height of β€˜1’ – 1 = 2
Level Each step from top to bottom is called a Level. If the root node is at level 0, its next child node is at level 1, its grandchild is at level 2, and so on. β€˜1’ or root node is at level 0, β€˜2’, β€˜3’, and β€˜4’ is at level 1, and so on.
Sub-Tree Descendants of a node represent a subtree. Nodes β€˜2’, β€˜5’, and β€˜6’ represent a sub-tree.
Degree of Node The degree of a node represents the total number of children in it. The degree of β€˜2’ is 2 (β€˜5’ and β€˜6’). The degree of β€˜4’ is 1.

Explore popular courses on Shiksha Online

Popular Programming Courses Popular Big Data Courses
Best Cloud Technologies Courses Best Databases Courses

Application of Tree Data Structure

File system:

The files and folders in your Windows Explorer are stored in the tree format. In the below image, you can say that β€˜My Computer’ is the root; Local Disk (C), Local Disk (D), and Local Disk (E) are basically the parent nodes and the files inside them are leaf nodes. This allows faster traversal of the nodes while jumping from one node to another.


Webpage Layout

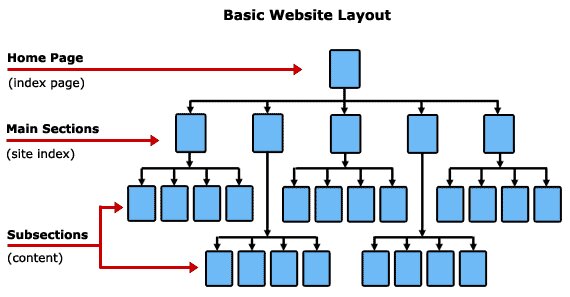

The layout of a webpage is designed in the tree structure. In the below diagram, the homepage or index page is our root node, main sections/ site index are their child nodes, which again are parents to multiple other child nodes (subsections).
