Moving Charges and Magnetism: Topics Covered

  •       Introduction to Moving Charges and Magnetism
  •       Magnetic Force
  •       Motion in a Magnetic Field
  •       Magnetic Field due to a Current Element, Biot-Savart Law
  •       Magnetic Field on the Axis of a Circular Current Loop
  •       Ampere’s Circuital Law
  •       The Solenoid
  •       Force between Two Parallel Currents, the Ampere
  •       Torque on Current Loop, Magnetic Dipole
  •       The Moving Coil Galvanometer

Download Here NCERT Class 12th Physics Chapter 4 Moving Charges and Magnetism Solutions PDF

MOVING CHARGES AND MAGNETISM Topics Covered

Q.4.1 A circular coil of wire consisting of 100 turns, each of radius 8.0 cm carries a current of 0.40 A. What is the magnitude of the magnetic field B at the centre of the coil?

Ans.4.1 Number of turns of the circular coil, n = 100

Radius of each turn, r = 8.0 cm = 0.08 m

Current flowing in the coil, I = 0.4 A

Magnitude of the magnetic field at the centre of the coil is given as

B = μ 0 4 π 2 π n I r where μ 0 = Permeability of free space = 4 π × 10 - 7 Tm A - 1
Hence, B = 4 π × 10 - 7 4 π 2 π × 100 × 0.4 0.08 = 3.14 × 10 - 4 T



Q.4.2 A long straight wire carries a current of 35 A. What is the magnitude of the field B at a point 20 cm from the wire?

Ans.4.2 Current in the wire, I = 35 A

Distance of a point from the wire, r = 20 cm = 0.2 m

Magnitude of the magnetic field at this point is given as

B = μ 0 4 π 2 I r where μ 0 = Permeability of free space = 4 π × 10 - 7 Tm A - 1

Hence, B = 4 π × 10 - 7 4 π 2 × 35 0.2 = 3.50 × 10 - 5 T



Q.4.3 A long straight wire in the horizontal plane carries a current of 50 A in north to south direction. Give the magnitude and direction of B at a point 2.5 m east of the wire.

Ans.4.3 Current in the wire, I = 50 A

The distance of the point from the wire, r = 2.5 m

Magnitude of the magnetic field at this point is given as

B = μ 0 4 π 2 I r where μ 0 = Permeability of free space = 4 π × 10 - 7 Tm A - 1

Hence, B = 4 π × 10 - 7 4 π 2 × 50 2.5 = 4.0 × 10 - 6 T

The direction of the current in the wire is vertically downward. Hence, according to Maxwell’s right hand rule, the direction of the magnetic field at the given point is vertically upward.



Q.4.4 A horizontal overhead power line carries a current of 90 A in east to west direction. What is the magnitude and direction of the magnetic field due to the current 1.5 m below the line?

Ans.4.4 Current in the power line, I = 90 A

Point is located below power line at a distance, r = 1.5 m

Magnitude of the magnetic field at this point is given as

B = μ 0 4 π 2 I r where μ 0 = Permeability of free space π × 10 - 7 = 4 Tm A - 1

Hence, B = 4 π × 10 - 7 4 π 2 × 90 1.5 = 1.2 × 10 - 5 T



Q.4.5 What is the magnitude of magnetic force per unit length on a wire carrying a current of 8 A and making an angle of 30º with the direction of a uniform magnetic field of 0.15 T?

Ans.4.5 Current in the wire, I = 8 A

Magnitude of the uniform magnetic field, B = 0.15 T

Angle between the wire and the magnetic field, θ = 30 °

Magnetic force per unit length of the wire is given as

f = BI sin θ = 0.15 × 8 × sin 30 ° = 0.6 N/m



Q.4.6 A 3.0 cm wire carrying a current of 10 A is placed inside a solenoid perpendicular to its axis. The magnetic field inside the solenoid is given to be 0.27 T. What is the magnetic force on the wire?

Ans.4.6 Length of the wire, l = 3 cm = 0.03 m

Current flowing in the wire, I = 10 A

Magnetic field, B = 0.27 T

Angle between current and the magnetic field, θ = 90 °

Magnetic force exerted on the wire is given as

F= BI l sin θ = 0.27 × 10 × 0.03 sin 90 ° = 8.1 × 10 - 2 N



Q.4.7 Two long and parallel straight wires A and B carrying currents of 8.0 A and 5.0 A in the same direction are separated by a distance of 4.0 cm. Estimate the force on a 10 cm section of wire A.

Ans.4.7 Current flowing in wire A, I A = 8.0 A

Current flowing in wire B, I B = 5.0 A

Distance between two wires, r = 4.0 cm = 0.04 m

Length of the section of the wire A, L = 10 cm = 0.1 m

Force exerted on length L due to magnetic field is given as:

F = μ 0 I A I B L 2 π r , where μ 0 = permeability of free space = 4 π × 10 - 7 Tm A - 1

F = 4 π × 10 - 7 × 8 × 5 × 0.1 2 π × 0.04 = 2 × 10 - 5 N

The magnitude of force is 2 × 10 - 5 N. This is an attractive force normal to A, towards B. Because the direction of the currents in both the wire is same.



Q.4.8 A closely wound solenoid 80 cm long has 5 layers of windings of 400 turns each. The diameter of the solenoid is 1.8 cm. If the current carried is 8.0 A, estimate the magnitude of B inside the solenoid near its centre.

Ans.4.8 Length of the solenoid, l = 80 cm = 0.8 m

Total number of turns in 5 layers, n = 5 × 400 = 2000

Diameter of the solenoid, D = 1.8 cm = 0.018 m

Current carrying by the solenoid, I = 8.0 A

Magnitude of the magnetic field inside the solenoid near its centre is given by the relation,

B = μ 0 N I l , where μ 0 = permeability of free space = 4 π × 10 - 7 Tm A - 1

B = 4 π × 10 - 7 × 2000 × 8 0.8 = 2.51 × 10 - 2 T



Q.4.9 A square coil of side 10 cm consists of 20 turns and carries a current of 12 A. The coil is suspended vertically and the normal to the plane of the coil makes an angle of 30º with the direction of a uniform horizontal magnetic field of magnitude 0.80 T. What is the magnitude of torque experienced by the coil?

Ans.4.9 Length of a side of the square coil, l = 10 cm = 0.1 m

Current flowing through the coil, I = 12 A

Number of turns of the coil, n = 20

Angle made by the plane of the coil with magnetic field, θ = 30 °

Strength of the magnetic field, B = 0.80 T

Magnitude of the magnetic torque experienced by the coil in the magnetic field is given by,

τ = nBIA sin θ , where A = Area of the square coil = 0.1 × 0.1 = 0.01 m 2



τ = 20 × 0.8 × 12 × 0.01 × sin 30 ° = 0.96 Nm

Q.4.10 Two moving coil meters, M1 and M2 have the following particulars:

R1 = 10 Ω, N1 = 30,

A1 = 3.6 × 10–3 m2, B1 = 0.25 T

R2 = 14 Ω, N2 = 42,

A2 = 1.8 × 10–3 m2, B2 = 0.50 T

(The spring constants are identical for the two meters).

Determine the ratio of (a) current sensitivity and (b) voltage sensitivity of M2 and M1.

Ans.4.10 For moving coil meter M1

Current sensitivity of M 1 is given as I s 1 = N 1 B 1 A 1 K 1 and

for M 2 is given as I s 2 = N 2 B 2 A 2 K 2 where K 1 and K 2 are spring constants for both M 1 & M 2 . It is given K 1 = K 2

The ratio of current sensitivity is given as I s 2 I s 1 = N 2 B 2 A 2 N 1 B 1 A 1 = 42 × 0.5 × 1.8 × 10 - 3 30 × 0.25 × 3.6 × 10 - 3 = 1.4

Voltage sensitivity of M 1 a n d M 2 is given by V S 1 = N 1 B 1 A 1 K 1 R 1 and V S 2 = N 2 B 2 A 2 K 2 R 2

The ratio of voltage sensitivity V S 2 V S 1 = N 2 B 2 A 2 K 1 R 1 N 1 B 1 A 1 K 2 R 2 = N 2 B 2 A 2 R 1 N 1 B 1 A 1 R 2

= 42 × 0.5 × 1.8 × 10 - 3 × 10 30 × 0.25 × 3.6 × 10 - 3 × 14 = 1



Q.4.11 In a chamber, a uniform magnetic field of 6.5 G (1 G = 10–4 T) is maintained. An electron is shot into the field with a speed of 4.8 × 106 m s–1 normal to the field. Explain why the path of the electron is a circle. Determine the radius of the circular orbit.

(e = 1.6 × 10–19 C, me = 9.1×10–31 kg)

Ans.4.11 Magnetic field strength, B = 6.5 G = 6.5 × 10 - 4 T

Speed of electron, v = 4.8 × 10 6 m/s

Charge of electron, e = 1.6 × 10 - 19 C

Mass of electron, m = 9.1 × 10 - 31 kg

Angle between the shot electron and the magnetic field, θ = 90 °

Magnetic force exerted on the electron in the magnetic field is given as:

F = evB sin θ

This force provides centripetal force to the moving electron. Hence, the electron starts moving in a circular path of radius r

The centripetal force exerted on electron, F c = m v 2 r

In equilibrium, the centripetal force exerted on electron = magnetic force on the electron

F = F c

evB sin θ = m v 2 r

r = m v e B sin θ = 9.1 × 10 - 31 × 4.8 × 10 6 1.6 × 10 - 19 × 6.5 × 10 - 4 × s i n 90 ° = 4.20 × 10 - 2 m = 4.20 cm



Q.4.12 In Exercise 4.11 obtain the frequency of revolution of the electron in its circular orbit. Does the answer depend on the speed of the electron? Explain.

Ans.4.12 Let the frequency of revolution = ν

Angular frequency = ω = 2 π ν

Now, velocity of electron, v = r ω

Since in circular orbit, magnetic force is balanced by the centripetal force, we can write

evB = m v 2 r or eB = m v r = m ( r ω ) r = 2 π ν m r r

This frequency is independent of the speed of electron.

ν = 1.6 × 10 - 19 × 6.5 × 10 - 4 2 π × 9.1 × 10 - 31 = 18.19 × 10 6 Hz = 18.19 MHz

Q.4.13 (a) A circular coil of 30 turns and radius 8.0 cm carrying a current of 6.0 A is suspended vertically in a uniform horizontal magnetic field of magnitude 1.0 T. The field lines make an angle of 60° with the normal of the coil. Calculate the magnitude of the counter torque that must be applied to prevent the coil from turning.

(b) Would your answer change, if the circular coil in (a) were replaced by a planar coil of some irregular shape that encloses the same area? (All other particulars are also unaltered.)

Ans.4.13 Number of turns of the circular coil, n = 30

Radius of the coil, r = 8.0 cm = 0.08 m

Area of the coil, A = π r 2 = π × 0.08 2 = 0.0201 m 2

Current flowing in the coil, I = 6.0 A

Magnetic field strength, B = 1 T

Angle between the field line and normal of the coil surface, θ = 60

The coil experiences a toque in the magnetic field, hence it turns.

The counter torque is given by the relation,

τ = n I B A sin θ = 30 × 6 × 1 × 0.0201 sin 60 ° = 3.133 N

Since the magnitude of the torque is not dependent on the shape of the coil, it depends only on the area. Hence he answer will not change if the circular coil is replaced with a planar coil of same area.



Q.4.14 Two concentric circular coils X and Y of radii 16 cm and 10 cm, respectively, lie in the same vertical plane containing the north to south direction. Coil X has 20 turns and carries a current of 16 A; coil Y has 25 turns and carries a current of 18 A. The sense of the current in X is anticlockwise, and clockwise in Y, for an observer looking at the coils facing west. Give the magnitude and direction of the net magnetic field due to the coils at their centre.

Ans.4.14 For coil X:

Radius, r 1 = 16 cm = 0.16 m

Number of turns, n 1 = 20

Current, I 1 = 16 A

For coil Y:

Radius, r 2 = 10 cm = 0.10 m

Number of turns, n 2 = 25

Current, I 2 = 18 A

Magnetic field due to coil X at their centre is given by the relation:

B 1 = μ 0 n 1 I 1 2 r 1 , where = Permeability of free space = 4 π × 10 - 7 T m A - 1
B 1 = 4 π × 10 - 7 × 20 × 16 2 × 0.16 = 1.257 × 10 - 3 T (towards East)

Magnetic field due to coil Y at their centre is given by the relation:

B 2 = μ 0 n 2 I 2 2 r 2 , where μ 0 = Permeability of free space = 4 π × 10 - 7 T m A - 1

B 2 = 4 π × 10 - 7 × 25 × 18 2 × 0.10 = 2.827 × 10 - 3 T (towards West)

The net magnetic field B = B 2 - B 1 = 2.827 × 10 - 3 - 1.257 × 10 - 3 = 1.57 × 10 - 3 T ( towards West)



Q.4.15 A magnetic field of 100 G (1 G = 10–4 T) is required which is uniform in a region of linear dimension about 10 cm and area of cross-section about 10–3 m2. The maximum current-carrying capacity of a given coil of wire is 15 A and the number of turns per unit length that can be wound round a core is at most 1000 turns m–1. Suggest some appropriate design particulars of a solenoid for the required purpose. Assume the core is not ferromagnetic.

Ans.4.15 Magnetic field strength, B = 100 G = 100 10 - 4 T

Number of turns per unit length, n = 1000 turns / m

Current flowing in the coil, I = 15 A

μ 0 = Permeability of free space = 4 π × 10 - 7 T m A - 1

Magnetic field is given by the relation,

B = μ 0 n I or nI = B μ 0 = 100 × 10 - 4 4 π × 10 - 7 = 7957.75 A m - 1 8000 A m - 1

If the length of the coil is taken as 50 cm , radius 4 cm, number of turns 400 and current 10 A, then these values are not unique for the given purpose. There is always a possibility of some adjustments with limits.



Q.4.16 For a circular coil of radius R and N turns carrying current I, the magnitude of the magnetic field at a point on its axis at a distance x from its centre is given by,

B = μ 0 I R 2 N 2 ( x 2 + R 2 ) 3 2

(a) Show that this reduces to the familiar result for field at the centre of the coil.

(b) Consider two parallel co-axial circular coils of equal radius R, and number of turns N, carrying equal currents in the same direction, and separated by a distance R. Show that the field on the axis around the mid-point between the coils is uniform over a distance that is small as compared to R, and is given by,

B =0.72 μ 0 N I R , approximately.

[Such an arrangement to produce a nearly uniform magnetic field over a small region is known as Helmholtz coils.]

Ans.4.16 Radius of the circular coil = R

Number of turns on the coil = N

Current in the coil= I

Magnetic field at a point on its axis at a distance x is given as:

B = μ 0 I R 2 N 2 ( x 2 + R 2 ) 3 2

where μ 0 = Permeability of free space = 4 π × 10 - 7 T m A - 1

If the magnetic field at the centre of the coil is considered, then x = 0, then

B = μ 0 I R 2 N 2 ( 0 + R 2 ) 3 2 = μ 0 I N 2 R

This is the familiar result for magnetic field at the centre of the coil.

Radius of two parallel co-axial circular coils = R

Number of turns on each coil = N

Current in both the coils = I μ 0 I R 2 N 2 { ( R 2 - d ) 2 + R 2 } 3 2 + { ( R 2 + d ) 2 + R 2 } 3 2

Distance between both the coils = R

Let us consider point Q at a distance d from the centre.

Then one coil is at a distance of + d from point Q

Magnetic field at point Q is given as:

B 1 = μ 0 I R 2 N 2 ( R 2 + d ) 2 + R 2 ) 3 2

A l s o , the other coil is at a distance of R 2 – d from point Q,

Magnetic field due to this coil is given as

B 2 = μ 0 I R 2 N 2 ( R 2 + d ) 2 + R 2 ) 3 2

Total magnetic field, B = B 1 + B 2

= μ 0 I R 2 N 2 ( R 2 + d ) 2 + R 2 ) 3 2 + μ 0 I R 2 N 2 ( R 2 - d ) 2 + R 2 ) 3 2

= μ 0 I R 2 N 2 { ( R 2 - d ) 2 + R 2 } 3 2 + { ( R 2 + d ) 2 + R 2 } 3 2

= μ 0 I R 2 N 2 { 5 R 2 4 + d 2 - R d } 3 2 + { 5 R 2 4 + d 2 + R d } 3 2

= μ 0 I R 2 N 2 × ( 5 R 2 4 ) 3 2 { 1 + 4 5 d 2 R 2 - 4 5 d R } 3 2 + { 1 + 4 5 d 2 R 2 + 4 5 d R } 3 2

For d R , neglecting the factor , we get

= μ 0 I R 2 N 2 × ( 5 R 2 4 ) 3 2 { 1 - 4 5 d R } 3 2 + { 1 + 4 5 d R } 3 2

= μ 0 I R 2 N 2 R 3 × ( 4 5 ) 3 2 1 - 6 d 5 R + 1 + 6 d 5 R

= ( 4 5 ) 3 2 μ 0 I N R

B = 0.72 μ 0 I N R

Hence, it is proved that the field on the axis around mid-point between the coils is uniform.



Q.4.17 A toroid has a core (non-ferromagnetic) of inner radius 25 cm and outer radius 26 cm, around which 3500 turns of a wire are wound. If the current in the wire is 11 A, what is the magnetic field (a) outside the toroid, (b) inside the core of the toroid, and (c) in the empty space surrounded by the toroid.

Ans.4.17 Inner radius of the toroid, r 1 = 25 cm = 0.25 m

Outer radius of the toroid, r 2 = 26 cm = 0.26 m

Number of turns on the coil, N = 3500

Current in the coil, I = 11 A

Magnetic field outside a toroid is zero. It is non-zero only inside the core of a toroid.

Magnetic field inside the core of a toroid is given by the relation,

B = μ 0 N I l . where μ 0 = Permeability of free space = 4 π × 10 - 7 T m A - 1

L = length of the toroid = 2 π ( r 1 + r 2 2 ) = π (0.25 + 0.26)= 1.6022

B = ( 4 π × 10 - 7 × 3500 × 11 1.6022 ) = 3.0 × 10 - 2 T

Magnetic field in the empty space surrounded by the toroid is zero.



Q.4.18 Answer the following questions:

(a) A magnetic field that varies in magnitude from point to point but has a constant direction (east to west) is set up in a chamber. A charged particle enters the chamber and travels undeflected along a straight path with constant speed. What can you say about the initial velocity of the particle?

(b) A charged particle enters an environment of a strong and non-uniform magnetic field varying from point to point both in magnitude and direction, and comes out of it following a complicated trajectory. Would its final speed equal the initial speed if it suffered no collisions with the environment?

(c) An electron travelling west to east enters a chamber having a uniform electrostatic field in north to south direction. Specify the direction in which a uniform magnetic field should be set up to prevent the electron from deflecting from its straight line path.

Ans.4.18 The initial velocity of the particle is either parallel or anti-parallel to the magnetic field. Hence, it travels along a straight path without suffering any deflection in the field.

Yes, the final speed of the particle will be equal to its initial speed. This because magnetic force can change the direction of velocity, not its magnitude.

This moving electron can remain undeflected if the electric force acting on it is equal and opposite of magnetic field. Magnetic force is directed towards the south. According to Fleming’s left hand rule, magnetic field should be applied in a vertically downward direction.



Q.4.19 An electron emitted by a heated cathode and accelerated through a potential difference of 2.0 kV, enters a region with uniform magnetic field of 0.15 T. Determine the trajectory of the electron if the field

(a) is transverse to its initial velocity,

(b) makes an angle of 30º with the initial velocity.

Ans.4.19 Magnetic field strength, B = 0.15 T

Charge on the electron, e = 1.6 × 10 - 19 C

Mass of the electron, m = 9.1 × 10 - 31 k g

Potential difference, V = 2.0 kV = 2 × 10 3 V

Thus the kinetic energy of the electron = eV = 1 2 m v 2 , where v = velocity of electron

v = 2 e V m ……..(1)

Magnetic force on the electron provides the required centripetal force of the electron. Hence, electron traces a circular path of radius r

Magnetic force on the electron = Bev

Centripetal force m v 2 r

Hence, Bev = m v 2 r

r = m v B e ………………(2)

From equation (1) and (2), we get

r = m B e 2 e V m 1 2

= 9.1 × 10 - 31 0.15 × 1.6 × 10 - 19 × 2 × 1.6 × 10 - 19 × 2 × 10 3 9.1 × 10 - 31 1 2

r = 1.006 × 10 - 3 m = 1.0 mm

Hence, the electron has a circular trajectory of radius 1.0 mm normal to the magnetic field.

When the field makes an angle θ of 30 ° wit initial velocity, the initial velocity will be,

v 1 = v sin θ

F r o m equation (2), we can write the expression for the new radius as :

r 1 = m v 1 B e = m v sin θ B e = 9.1 × 10 - 31 0.15 × 1.6 × 10 - 19 × 2 × 1.6 × 10 - 19 × 2 × 10 3 9.1 × 10 - 31 1 2 × sin 30 °

Hence, the electron has a helical trajectory of radius 0.5 mm along the magnetic field direction.



Q.4.20 A magnetic field set up using Helmholtz coils (described in Exercise 4.16) is uniform in a small region and has a magnitude of 0.75 T. In the same region, a uniform electrostatic field is maintained in a direction normal to the common axis of the coils. A narrow beam of (single species) charged particles all accelerated through 15 kV enters this region in a direction perpendicular to both the axis of the coils and the electrostatic field. If the beam remains undeflected when the electrostatic field is 9.0 × 10–5 V m–1, make a simple guess as to what the beam contains. Why is the answer not unique?

Ans.4.20 Magnetic field, B = 0.75 T

Accelerating voltage, V = 15 kV = 15 × 10 - 3 V

Electrostatic field, E = 9.0 × 10 5 V/m

Let the mass of electron = m, Charge of the electron = e, Velocity of the electron = v

Then kinetic energy of the electron = eV

1 2 m v 2 = eV or e m = v 2 2 V ………….(1)

Since the particle remains un-deflected by electric and magnetic field, we can infer that the electric field is balancing the magnetic field.

Hence eE = evB or v = E B ………(2)

Combining equation (1) and (2), we get

e m = 1 2 ( E B ) 2 V = E 2 2 V B 2 = ( 9.0 × 10 5 ) 2 2 × 15000 × 0.75 2 = 48 × 10 6 C/kg

This value of specific charge e/m is equal to the value of deuteron or deuterium ions. This is not a unique answer. Other possible answers are H e + + , L i + + etc.



Q.4.21 A straight horizontal conducting rod of length 0.45 m and mass 60 g is suspended by two vertical wires at its ends. A current of 5.0 A is set up in the rod through the wires.

(a) What magnetic field should be set up normal to the conductor in order that the tension in the wires is zero?

(b) What will be the total tension in the wires if the direction of current is reversed keeping the magnetic field same as before?

(Ignore the mass of the wires.) g = 9.8 m s–2.

Ans.4.21 Length of the rod. l= 0.45 m

Mass suspended by the wire, m = 60 g = 60 × 10 - 3 kg

Acceleration due to gravity, g = 9.8 m/ s 2

Current, I = 5 A

To achieve zero tension, the magnetic field = weight of the wire

BIl = mg or

B = m g I l = 60 × 10 - 3 × 9.8 5 × 0.45 = 0.26 T

The magnetic field should be set up such that it gives an upward magnetic force.

If the direction of current is reversed, then the magnetic force will act downwards and total tension in the wire will be

mg + BIl = 60 × 10 - 3 × 9.8 + 0.26 × 5 × 0.45 = 1.173 T



Q.4.22 The wires which connect the battery of an automobile to its starting motor carry a current of 300 A (for a short time). What is the force per unit length between the wires if they are 70 cm long and 1.5 cm apart? Is the force attractive or repulsive?

Ans.4.22 Current in both the wires, I = 300 A

Distance between the wires, r = 1.5 cm = 0.015 m

Length of the two wires, l = 70 cm = 0.7 m

Now, force between the two wires is given by the relation:

F = μ 0 I 2 2 π r , where μ 0 = Permeability of free space = 4 π × 10 - 7 T m A - 1

Hence F = 4 π × 10 - 7 × 300 2 2 π × 0.015 N/m = 1.2 N/m

Since the direction of the current in the wires is opposite, a repulsive force exists between them.



Q.4.23 A uniform magnetic field of 1.5 T exists in a cylindrical region of radius10.0 cm, its direction parallel to the axis along east to west. A wire carrying current of 7.0 A in the north to south direction passes through this region. What is the magnitude and direction of the force on the wire if,

(a) the wire intersects the axis,

(b) the wire is turned from N-S to northeast-northwest direction,

(c) the wire in the N-S direction is lowered from the axis by a distance of 6.0 cm?

Ans.4.23 Magnetic field strength, B = 1.5 T

Radius of the cylindrical region, r = 10 cm = 0.1 m

Current in the wire passing through the cylindrical region, I = 7 A

If the wire intersect the axis, then the length of the wire is the diameter of the cylindrical region, then l = 2r = 0.2 m

Angle between the magnetic field, θ = 90 °

Magnetic force acting on the wire is given by the relation,

F = BIl sin θ = 1.5 × 7 × 0.2 × sin 90 ° = 2.1 N

Hence, a force of 2.1 N acts on the wire in a vertically downward direction.

If the wire is turned from N-S to NE-NW direction, new length of the wire can be given as

l 1 = l sin θ

Angle between magnetic field and current θ = 45 °

Force on the wire,

F = BI l 1 sin θ = BIl = 1.5 × 7 × 0.2 = 2.1 N

A vertically downward force of 2.1 N acts on the wire.

When the wire is lowered from the axis by distance, d = 6.0 cm = 0.06 m

Let l 2 be the new length and l 2 is given by

( l 2 2 ) 2 = 4 (d + r) = 4(6 + 10) = 64

l 2 =16 cm = 0.16 m

M a g n e t i c f o r c e F 2 = BI l 2 = 1.5 × 7 × 0.16 = 1.68 N

The force acts vertically downwards.

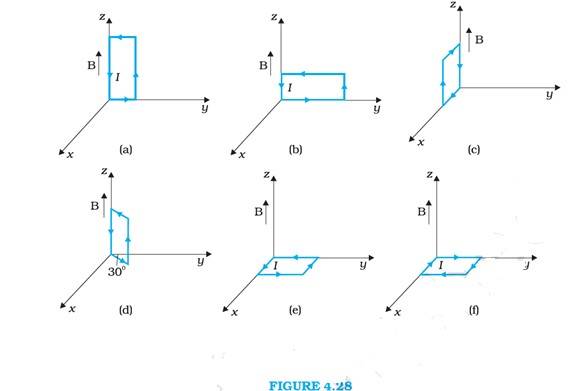

Q.4.24 A uniform magnetic field of 3000 G is established along the positive z-direction. A rectangular loop of sides 10 cm and 5 cm carries a current of 12 A. What is the torque on the loop in the different cases shown in Fig. 4.28? What is the force on each case? Which case corresponds to stable equilibrium?

Ans.4.24 Magnetic field strength, B = 3000G = 3000 × 10 - 4 T = 0.3 T

Length of the rectangular loop, l = 10 cm

Width of the rectangular loop, b = 5 cm

Area of the loop, A = l × b = 10 × 5 = 50 c m 2 = 50 × 10 - 4 m 2

Current in the loop, I = 12 A

Assume that the anti-clockwise direction of the current is positive and vice versa.

Torque, τ = A × B

From the given figure, it can be observed that A is normal to the y-z plane and B is directed along z-axis.

τ = 12*( 50 × 10 - 4 ) i ̂ × 0.3 k ̂ = - 1.8 × 10 - 2 j ̂ Nm

The Torque 1.8 × 10 - 2 is Nm along the negative y-direction.

The force on the loop is zero because the angle between A & B is zero.

This case is similar to case (a). The answer is same as case (a)

Torque, τ = I A × B

From the given figure, it can be observed that A is normal to the x-z plane and B is directed along z-axis.

= - 12 × (50 × 10 - 4 ) i ̂ × 0.3 k ̂ = 1.8 × 10 - 2 Nm

The Torque is 1.8 × 10 - 2 Nm at an angle 240 ° with positive x direction. The force is zero

Magnitude of the torque is given as:

| τ |= IAB|

12 × 50 × 10 - 4 × 0.3 = 1.8 × 10 - 2 Nm

The Torque is 1.8 × 10 - 2 is Nm at an angle 240 with positive x direction. The force is zero.

Torque, τ = I A × B

= (12 × 50 × 10 - 4 ) k ̂ × 0.3 k ̂

= 0

The torque is zero and the force is also zero.

Torque, τ = I A × B

= (12 × 50 × 10 - 4 ) k ̂ × 0.3 k ̂

= 0

The torque is zero and the force is also zero.

In the case of (e), the direction of I A and B is the same and the angle between them is zero. If displaced, they come back to equilibrium. Hence, its equilibrium is stable.

In the case of (f), the direction of I A and B is opposite. The angle between them is 180 ° . If disturbed, it does not come back to its original position, hence the equilibrium is unstable.



Q.4.25 A circular coil of 20 turns and radius 10 cm is placed in a uniform magnetic field of 0.10 T normal to the plane of the coil. If the current in the coil is 5.0 A, what is the

(a) total torque on the coil,

(b) total force on the coil,

(c) average force on each electron in the coil due to the magnetic field?

(The coil is made of copper wire of cross-sectional area 10–5 m2, and the free electron density in copper is given to be about 1029 m–3.)

Ans.4.25 Number of turns on the circular coil, n =20

Radius of the coil, r = 10 cm = 0.1 m

Magnetic field strength, B = 0.10 T

Current in the coil, I = 5.0 A

The total torque on the coil is zero because the field is uniform.

The total torque on the coil is zero because the field is uniform.

Cross-sectional area of the copper coil, A = 10 - 5 m 2

Number of free electrons per cubic meter of copper, N = 10 29 / m 3

Charge on the electron, e = 1.6 × 10 19 C

Magnetic force, F = Be v d where v d is the drift velocity of electrons

v d = I N e A μ 0

H e n c e F = B e I N e A = 0.1 × 5 10 29 × 10 - 5 = 5 × 10 - 25 N

The average force on each electron is 5 × 10 - 25 N



Q.4.26 A solenoid 60 cm long and of radius 4.0 cm has 3 layers of windings of 300 turns each. A 2.0 cm long wire of mass 2.5 g lies inside the solenoid (near its centre) normal to its axis; both the wire and the axis of the solenoid are in the horizontal plane. The wire is connected through two leads parallel to the axis of the solenoid to an external battery which supplies a current of 6.0 A in the wire. What value of current (with appropriate sense of circulation) in the windings of the solenoid can support the weight of the wire? g = 9.8 m s–2.

Ans.4.26 Length of the solenoid, L = 60 cm = 0.6 m

Radius of the solenoid, r = 4.0 cm = 0.04 m

It is given that there are 3 layers of windings of 300 turns each

Hence, total number of turns, n = 900

Length, l = 2 cm = 0.02 m

Mass of the wire, m = 2.5 g = 2.5 × 10 - 3 kg × 10 - 3

Current flowing through the wire, I = 6 A

Acceleration due to gravity, g = 9.8 m/ s 2

We know, magnetic field produced inside the solenoid, B = μ 0 n I L

where μ 0 = Permeability of free space = 4 π × 10 - 7 T m A - 1

Magnetic force is given by the relation

F = Bil = μ 0 n I L × i l

Also the force on the wire is equal to the weight of the wire, F = mg

mg = μ 0 n I i l L

I = m g L μ 0 n i I = 2.5 × 10 - 3 × 9.8 × 0.6 4 π × 10 - 7 × 900 × 0.02 × 6 = 108 A

Hence, the current flowing through the solenoid is 108 A.



Q.4.27 A galvanometer coil has a resistance of 12 Ω and the meter shows full scale deflection for a current of 3 mA. How will you convert the meter into a voltmeter of range 0 to 18 V?

Ans.4.27 Resistance of the galvanometer coil, G = 12 Ω

Current for which there is full scale deflection, I g = 3 mA = 3 × 10 - 3 A

Range of voltmeter = 0, to be converted to 18 V, hence V = 18 V

Let there be a resistor R connected in series with the galvanometer to convert it into a voltmeter. R is given as

R = V I g - G = 18 3 × 10 - 3 - 12 = 5988 Ω

Hence the required value of resistor is 5988 Ω



Q.4.28 A galvanometer coil has a resistance of 15 Ω and the meter shows full scale deflection for a current of 4 mA. How will you convert the meter into an ammeter of range 0 to 6 A?

Ans.4.28 Resistance of the galvanometer coil, G = 15 Ω

Current for which galvanometer shows full deflection, I g = 4 mA = 4 × 10 - 3 A

Range of ammeter has to be converted from 0 to 6 A, hence I = 6 A

A shunt resistor S is to be connected in parallel with the galvanometer to convert it to an ammeter. The value of S is given as

S = = = 10 mΩ

Hence, a shunt resistor of 10 mΩ is to be connected to galvanometer to convert it to an ammeter.

Moving Charges and Magnetism Solutions and FAQs

Q.4.1 A circular coil of wire consisting of 100 turns, each of radius 8.0 cm carries a current of 0.40 A. What is the magnitude of the magnetic field B at the centre of the coil?

A 4.1

Number of turns of the circular coil, n = 100

Radius of each turn, r = 8.0 cm = 0.08 m

Current flowing in the coil, I = 0.4 A

Magnitude of the magnetic field at the centre of the coil is given as

 =  where  = Permeability of free space = 4 Tm

Hence,  =  = 3.14  T

Q.4.2 A long straight wire carries a current of 35 A. What is the magnitude of the field B at a point 20 cm from the wire?

Current in the wire, I = 35 A

Distance of a point from the wire, r = 20 cm = 0.2 m

Magnitude of the magnetic field at this point is given as

 =  where  = Permeability of free space = 4 Tm

Hence,  =  = 3.50  T

Q.4.3 A long straight wire in the horizontal plane carries a current of 50 A in north to south direction. Give the magnitude and direction of B at a point 2.5 m east of the wire.

Current in the wire, I = 50 A

The distance of the point from the wire, r = 2.5 m

Magnitude of the magnetic field at this point is given as

 =  where  = Permeability of free space = 4 Tm

Hence,  =  = 4.0  T

The direction of the current in the wire is vertically downward. Hence, according to Maxwell’s right hand rule, the direction of the magnetic field at the given point is vertically upward.

Q.4.4 A horizontal overhead power line carries a current of 90 A in east to west direction. What is the magnitude and direction of the magnetic field due to the current 1.5 m below the line?

Current in the power line, I = 90 A

Point is located below power line at a distance, r = 1.5 m

Magnitude of the magnetic field at this point is given as

 =  where  = Permeability of free space = 4 Tm

Hence,  =  = 1.2  T

The current is flowing from East to West. The point is below the power line. Hence, according to Maxwell’s right hand rule, the direction of the magnetic field is towards the South.

Q.4.5 What is the magnitude of magnetic force per unit length on a wire carrying a current of 8 A and making an angle of 30º with the direction of a uniform magnetic field of 0.15 T?

Current in the wire, I = 8 A

Magnitude of the uniform magnetic field, B = 0.15 T

Angle between the wire and the magnetic field,  = 30

Magnetic force per unit length of the wire is given as

f = BI = 0.15  = 0.6 N/m



Q.4.6 A 3.0 cm wire carrying a current of 10 A is placed inside a solenoid perpendicular to its axis. The magnetic field inside the solenoid is given to be 0.27 T. What is the magnetic force on the wire?

Length of the wire, l = 3 cm = 0.03 m

Current flowing in the wire, I = 10 A

Magnetic field, B = 0.27 T

Angle between current and the magnetic field,  = 90

Magnetic force exerted on the wire is given as

F= BI = 0.27  = 8.1  N

Q.4.7 Two long and parallel straight wires A and B carrying currents of 8.0 A and 5.0 A in the same direction are separated by a distance of 4.0 cm. Estimate the force on a 10 cm section of wire A.

Current flowing in wire A,  = 8.0 A

Current flowing in wire B,  = 5.0 A

Distance between two wires, r = 4.0 cm = 0.04 m

Length of the section of the wire A, L = 10 cm = 0.1 m

Force exerted on length L due to magnetic field is given as:

F =  , where  = permeability of free space = 4 Tm



F =   = 2  N

The magnitude of force is 2  N. This is an attractive force normal to A, towards B. Because the direction of the currents in both the wire is same.



Q.4.8 A closely wound solenoid 80 cm long has 5 layers of windings of 400 turns each. The diameter of the solenoid is 1.8 cm. If the current carried is 8.0 A, estimate the magnitude of B inside the solenoid near its centre.

Length of the solenoid, l = 80 cm = 0.8 m

Total number of turns in 5 layers, n = 5  = 2000

Diameter of the solenoid, D = 1.8 cm = 0.018 m

Current carrying by the solenoid, I = 8.0 A

Magnitude of the magnetic field inside the solenoid near its centre is given by the relation,

B = , where  = permeability of free space = 4 Tm

B =  = 2.51  T

Q.4.9 A square coil of side 10 cm consists of 20 turns and carries a current of 12 A. The coil is suspended vertically and the normal to the plane of the coil makes an angle of 30º with the direction of a uniform horizontal magnetic field of magnitude 0.80 T. What is the magnitude of torque experienced by the coil?

Length of a side of the square coil, l = 10 cm = 0.1 m

Current flowing through the coil, I = 12 A

Number of turns of the coil, n = 20

Angle made by the plane of the coil with magnetic field,  = 30

Strength of the magnetic field, B = 0.80 T



Magnitude of the magnetic torque experienced by the coil in the magnetic field is given by,

 = nBIA, where A = Area of the square coil = 0.1



 = 0.96 Nm

Q.4.10 Two moving coil meters, M1 and M2 have the following particulars: R1 = 10 Ω, N1 = 30, A1 = 3.6 × 10–3 m2, B1 = 0.25 T R2 = 14 Ω, N2 = 42, A2 = 1.8 × 10–3 m2, B2 = 0.50 T (The spring constants are identical for the two meters). Determine the ratio of (a) current sensitivity and (b) voltage sensitivity of M2 and M1.

  • For moving coil meter M1

Current sensitivity of  is given as  =  and

for is given as  =  where  and  are spring constants for both  & . It is given  =

The ratio of current sensitivity is given as  =  =  = 1.4

  • Voltage sensitivity of is given by =  and  =

The ratio of voltage sensitivity  =  =

=  = 1

Q.4.11 In a chamber, a uniform magnetic field of 6.5 G (1 G = 10–4 T) is maintained. An electron is shot into the field with a speed of 4.8 × 106 m s–1 normal to the field. Explain why the path of the electron is a circle. Determine the radius of the circular orbit. (e = 1.6 × 10–19 C, me = 9.1×10–31 kg)

Magnetic field strength, B = 6.5 G = 6.5 T

Speed of electron, v = 4.8  m/s

Charge of electron, e = 1.6  C

Mass of electron, m = 9.1  kg

Angle between the shot electron and the magnetic field,  = 90



Magnetic force exerted on the electron in the magnetic field is given as:

F = evB

This force provides centripetal force to the moving electron. Hence, the electron starts moving in a circular path of radius r

The centripetal force exerted on electron,  =

In equilibrium, the centripetal force exerted on electron = magnetic force on the electron

F =

evB

r =  =  = 4.20  m = 4.20 cm



Q.4.12 In Exercise 4.11 obtain the frequency of revolution of the electron in its circular orbit. Does the answer depend on the speed of the electron? Explain.

Let the frequency of revolution =

Angular frequency =

Now, velocity of electron, v = r

Since in circular orbit, magnetic force is balanced by the centripetal force, we can write

evB or eB =  =  =

This frequency is independent of the speed of electron.



 Hz = 18.19 MHz



4.13 (a) A circular coil of 30 turns and radius 8.0 cm carrying a current of 6.0 A is suspended vertically in a uniform horizontal magnetic field of magnitude 1.0 T. The field lines make an angle of 60° with the normal of the coil. Calculate the magnitude of the counter torque that must be applied to prevent the coil from turning. (b) Would your answer change, if the circular coil in (a) were replaced by a planar coil of some irregular shape that encloses the same area? (All other particulars are also unaltered.)

  • Number of turns of the circular coil, n = 30

Radius of the coil, r = 8.0 cm = 0.08 m

Area of the coil, A =  =  = 0.0201

Current flowing in the coil, I = 6.0 A

Magnetic field strength, B = 1 T

Angle between the field line and normal of the coil surface,  = 60



The coil experiences a toque in the magnetic field, hence it turns.

The counter torque is given by the relation,

 = 30 = 3.133 N



  • Since the magnitude of the torque is not dependent on the shape of the coil, it depends only on the area. Hence he answer will not change if the circular coil is replaced with a planar coil of same area.



Q.4.14 Two concentric circular coils X and Y of radii 16 cm and 10 cm, respectively, lie in the same vertical plane containing the north to south direction. Coil X has 20 turns and carries a current of 16 A; coil Y has 25 turns and carries a current of 18 A. The sense of the current in X is anticlockwise, and clockwise in Y, for an observer looking at the coils facing west. Give the magnitude and direction of the net magnetic field due to the coils at their centre.

For coil X:

Radius, = 16 cm = 0.16 m

Number of turns,  = 20

Current,  = 16 A



For coil Y:

Radius, = 10 cm = 0.10 m

Number of turns,  = 25

Current,  = 18 A



Magnetic field due to coil X at their centre is given by the relation:

 =  , where  = Permeability of free space = 4 T m



 = 1.257 T (towards East)



Magnetic field due to coil Y at their centre is given by the relation:

 =  , where  = Permeability of free space = 4 T m



 = 2.827 T (towards West)



The net magnetic field B =  -  = 2.827 - 1.257 = 1.57  T ( towards West)

Q.4.15 A magnetic field of 100 G (1 G = 10–4 T) is required which is uniform in a region of linear dimension about 10 cm and area of cross-section about 10–3 m2. The maximum current-carrying capacity of a given coil of wire is 15 A and the number of turns per unit length that can be wound round a core is at most 1000 turns m–1. Suggest some appropriate design particulars of a solenoid for the required purpose. Assume the core is not ferromagnetic.

Magnetic field strength, B = 100 G = 100  T

Number of turns per unit length, n = 1000 turns / m

Current flowing in the coil, I = 15 A

 = Permeability of free space = 4 T m

Magnetic field is given by the relation,

B =  or nI =  =  = 7957.75 AA

If the length of the coil is taken as 50 cm , radius 4 cm, number of turns 400 and current 10 A, then these values are not unique for the given purpose. There is always a possibility of some adjustments with limits.

Q.4.16 For a circular coil of radius R and N turns carrying current I, the magnitude of the magnetic field at a point on its axis at a distance x from its centre is given by, B = (μ_0 IR^2 N)/(2(〖x^2+ R^2)〗^(3/2) ) (a) Show that this reduces to the familiar result for field at the centre of the coil. (b) Consider two parallel co-axial circular coils of equal radius R, and number of turns N, carrying equal currents in the same direction, and separated by a distance R. Show that the field on the axis around the mid-point between the coils is uniform over a distance that is small as compared to R, and is given by, B =0.72(μ_0 NI)/R , approximately. [Such an arrangement to produce a nearly uniform magnetic field over a small region is known as Helmholtz coils.]

Radius of the circular coil = R

Number of turns on the coil = N

Current in the coil= I

Magnetic field at a point on its axis at a distance x is given as:

B =



where  = Permeability of free space = 4 T m



  • If the magnetic field at the centre of the coil is considered, then x = 0, then

B =  =

This is the familiar result for magnetic field at the centre of the coil.



  • Radius of two parallel co-axial circular coils = R

Number of turns on each coil = N

Current in both the coils = I

Distance between both the coils = R

Let us consider point Q at a distance d from the centre.

Then one coil is at a distance of  + d from point Q

Magnetic field at point Q is given as:

 =

, the other coil is at a distance of  – d from point Q,

Magnetic field due to this coil is given as



 =



Total magnetic field, B =  +

=  +

=

=

=

For d, neglecting the factor  , we get

=

=

=

B = 0.72

Hence, it is proved that the field on the axis around mid-point between the coils is uniform.



Q.4.17 A toroid has a core (non-ferromagnetic) of inner radius 25 cm and outer radius 26 cm, around which 3500 turns of a wire are wound. If the current in the wire is 11 A, what is the magnetic field (a) outside the toroid, (b) inside the core of the toroid, and (c) in the empty space surrounded by the toroid.

Inner radius of the toroid,  = 25 cm = 0.25 m

Outer radius of the toroid,  = 26 cm = 0.26 m

Number of turns on the coil, N = 3500

Current in the coil, I = 11 A



  • Magnetic field outside a toroid is zero. It is non-zero only inside the core of a toroid.



  • Magnetic field inside the core of a toroid is given by the relation,

B = . where  = Permeability of free space = 4 T m

L = length of the toroid = 2) = (0.25 + 0.26)= 1.6022

B =  = 3.0  T



  • Magnetic field in the empty space surrounded by the toroid is zero.



Q.4.18 Answer the following questions: (a) A magnetic field that varies in magnitude from point to point but has a constant direction (east to west) is set up in a chamber. A charged particle enters the chamber and travels undeflected along a straight path with constant speed. What can you say about the initial velocity of the particle? (b) A charged particle enters an environment of a strong and non-uniform magnetic field varying from point to point both in magnitude and direction, and comes out of it following a complicated trajectory. Would its final speed equal the initial speed if it suffered no collisions with the environment? (c) An electron travelling west to east enters a chamber having a uniform electrostatic field in north to south direction. Specify the direction in which a uniform magnetic field should be set up to prevent the electron from deflecting from its straight line path.

  • The initial velocity of the particle is either parallel or anti-parallel to the magnetic field. Hence, it travels along a straight path without suffering any deflection in the field.
  • Yes, the final speed of the particle will be equal to its initial speed. This because magnetic force can change the direction of velocity, not its magnitude.
  • This moving electron can remain undeflected if the electric force acting on it is equal and opposite of magnetic field. Magnetic force is directed towards the south. According to Fleming’s left hand rule, magnetic field should be applied in a vertically downward direction.



Q.4.19 An electron emitted by a heated cathode and accelerated through a potential difference of 2.0 kV, enters a region with uniform magnetic field of 0.15 T. Determine the trajectory of the electron if the field (a) is transverse to its initial velocity, (b) makes an angle of 30º with the initial velocity.

Magnetic field strength, B = 0.15 T

Charge on the electron, e = 1.6  C

Mass of the electron, m = 9.1

Potential difference, V = 2.0 kV = 2  V

Thus the kinetic energy of the electron = eV = m, where v = velocity of electron

v =  ……..(1)

  • Magnetic force on the electron provides the required centripetal force of the electron. Hence, electron traces a circular path of radius r

Magnetic force on the electron = Bev

Centripetal  force

Hence, Bev =

r =  ………………(2)

From equation (1) and (2), we get

r =

=

r = 1.006  m = 1.0 mm



Hence, the electron has a circular trajectory of radius 1.0 mm normal to the magnetic field.



  • When the field makes an angle of 30 wit initial velocity, the initial velocity will be,

 = v

  equation (2), we can write the expression for the new radius as :



= 0.503  m = 0.5 mm

Hence, the electron has a helical trajectory of radius 0.5 mm along the magnetic field direction.

Q.4.20 A magnetic field set up using Helmholtz coils (described in Exercise 4.16) is uniform in a small region and has a magnitude of 0.75 T. In the same region, a uniform electrostatic field is maintained in a direction normal to the common axis of the coils. A narrow beam of (single species) charged particles all accelerated through 15 kV enters this region in a direction perpendicular to both the axis of the coils and the electrostatic field. If the beam remains undeflected when the electrostatic field is 9.0 × 10–5 V m–1, make a simple guess as to what the beam contains. Why is the answer not unique?

Magnetic field, B = 0.75 T

Accelerating voltage, V = 15 kV = 15  V

Electrostatic field, E = 9.0  V/m

Let the mass of electron = m, Charge of the electron = e, Velocity of the electron = v

Then kinetic energy of the electron = eV

m = eV or  =  ………….(1)

Since the particle remains un-deflected by electric and magnetic field, we can infer that the electric field is balancing the magnetic field.

Hence eE = evB  or v =  ………(2)

Combining equation (1) and (2), we get

 =  = = 48 C/kg

This value of specific charge e/m is equal to the value of deuteron or deuterium ions. This is not a unique answer. Other possible answers are  ,  etc.

Q.4.21 A straight horizontal conducting rod of length 0.45 m and mass 60 g is suspended by two vertical wires at its ends. A current of 5.0 A is set up in the rod through the wires. (a) What magnetic field should be set up normal to the conductor in order that the tension in the wires is zero? (b) What will be the total tension in the wires if the direction of current is reversed keeping the magnetic field same as before? (Ignore the mass of the wires.) g = 9.8 m s–2.

Length of the rod. l= 0.45 m

Mass suspended by the wire, m = 60 g = 60  kg

Acceleration due to gravity, g = 9.8 m/

Current, I = 5 A



  • To achieve zero tension, the magnetic field = weight of the wire

BIl = mg or

B =  =  = 0.26 T

The magnetic field should be set up such that it gives an upward magnetic force.



  • If the direction of current is reversed, then the magnetic force will act downwards and total tension in the wire will be

mg + BIl = 60  = 1.173 T

Q.4.22 The wires which connect the battery of an automobile to its starting motor carry a current of 300 A (for a short time). What is the force per unit length between the wires if they are 70 cm long and 1.5 cm apart? Is the force attractive or repulsive?

Current in both the wires, I = 300 A

Distance between the wires, r = 1.5 cm = 0.015 m

Length of the two wires, l = 70 cm = 0.7 m



Now, force between the two wires is given by the relation:

F = , where  = Permeability of free space = 4 T m

Hence F =  N/m = 1.2 N/m

Since the direction of the current in the wires is opposite, a repulsive force exists between them.



Q.4.23 A uniform magnetic field of 1.5 T exists in a cylindrical region of radius10.0 cm, its direction parallel to the axis along east to west. A wire carrying current of 7.0 A in the north to south direction passes through this region. What is the magnitude and direction of the force on the wire if, (a) the wire intersects the axis, (b) the wire is turned from N-S to northeast-northwest direction, (c) the wire in the N-S direction is lowered from the axis by a distance of 6.0 cm?

Magnetic field strength, B = 1.5 T

Radius of the cylindrical region, r = 10 cm = 0.1 m

Current in the wire passing through the cylindrical region, I = 7 A



  • If the wire intersect the axis, then the length of the wire is the diameter of the cylindrical region, then l = 2r = 0.2 m

Angle between the magnetic field,

Magnetic force acting on the wire is given by the relation,

F = BIl = 1.5  = 2.1 N

Hence, a force of 2.1 N acts on the wire in a vertically downward direction.



  • If the wire is turned from N-S to NE-NW direction, new length of the wire can be given as

Angle between magnetic field and current  = 45

Force on the wire,

F = BI = BIl = 1.5 0.2 = 2.1 N

A vertically downward force of 2.1 N acts on the wire.



  • When the wire is lowered from the axis by distance, d = 6.0 cm = 0.06 m

Let  be the new length and  is given by

 = 4 (d + r) = 4(6 + 10) = 64

16 cm = 0.16 m

  = BI = 1.5  = 1.68 N

The force acts vertically downwards.

Q.4.24 A uniform magnetic field of 3000 G is established along the positive z-direction. A rectangular loop of sides 10 cm and 5 cm carries a current of 12 A. What is the torque on the loop in the different cases shown in Fig. 4.28? What is the force on each case? Which case corresponds to stable equilibrium?

Magnetic field strength, B = 3000G = 3000  T = 0.3 T

Length of the rectangular loop, l = 10 cm

Width of the rectangular loop, b = 5 cm

Area of the loop, A = l  = 10  = 50  = 50

Current in the loop, I = 12 A

Assume that the anti-clockwise direction of the current is positive and vice versa.



Q.4.25 A circular coil of 20 turns and radius 10 cm is placed in a uniform magnetic field of 0.10 T normal to the plane of the coil. If the current in the coil is 5.0 A, what is the (a) total torque on the coil, (b) total force on the coil, (c) average force on each electron in the coil due to the magnetic field? (The coil is made of copper wire of cross-sectional area 10–5 m2, and the free electron density in copper is given to be about 1029 m–3.)

Number of turns on the circular coil, n =20

Radius of the coil, r = 10 cm = 0.1 m

Magnetic field strength, B = 0.10 T

Current in the coil, I = 5.0 A



  • The total torque on the coil is zero because the field is uniform.
  • The total torque on the coil is zero because the field is uniform.
  • Cross-sectional area of the copper coil, A =

Number of free electrons per cubic meter of copper, N =  /

Charge on the electron, e = 1.6  C

Magnetic force, F = Be where  is the drift velocity of electrons



 =  =  = 5  N

The average force on each electron is 5  N

Q.4.26 A solenoid 60 cm long and of radius 4.0 cm has 3 layers of windings of 300 turns each. A 2.0 cm long wire of mass 2.5 g lies inside the solenoid (near its centre) normal to its axis; both the wire and the axis of the solenoid are in the horizontal plane. The wire is connected through two leads parallel to the axis of the solenoid to an external battery which supplies a current of 6.0 A in the wire. What value of current (with appropriate sense of circulation) in the windings of the solenoid can support the weight of the wire? g = 9.8 m s–2.

Length of the solenoid, L = 60 cm = 0.6 m

Radius of the solenoid, r = 4.0 cm = 0.04 m

It is given that there are 3 layers of windings of 300 turns each

Hence, total number of turns, n = 900

Length, l = 2 cm = 0.02 m

Mass of the wire, m = 2.5 g = 2.5  kg

Current flowing through the wire, I = 6 A

Acceleration due to gravity, g = 9.8 m/



We know, magnetic field produced inside the solenoid, B =

where  = Permeability of free space = 4 T m



Magnetic force is given by the relation

F = Bil =

Also the force on the wire is equal to the weight of the wire, F = mg

mg =

I =  =  = 108 A

Hence, the current flowing through the solenoid is 108 A.



Q.4.27 A galvanometer coil has a resistance of 12 Ω and the meter shows full scale deflection for a current of 3 mA. How will you convert the meter into a voltmeter of range 0 to 18 V?

Resistance of the galvanometer coil, G = 12 Ω

Current for which there is full scale deflection,  = 3 mA = 3  A

Range of voltmeter = 0, to be converted to 18 V, hence V = 18 V

Let there be a resistor R connected in series with the galvanometer to convert it into a voltmeter. R is given as

R =  - G =  - 12 = 5988 Ω

Hence the required value of resistor is 5988 Ω

Q.4.28 A galvanometer coil has a resistance of 15 Ω and the meter shows full scale deflection for a current of 4 mA. How will you convert the meter into an ammeter of range 0 to 6 A?

Resistance of the galvanometer coil, G = 15 Ω

Current for which galvanometer shows full deflection,  = 4 mA = 4  A

Range of ammeter has to be converted from 0 to 6 A, hence I = 6 A

A shunt resistor S is to be connected in parallel with the galvanometer to convert it to an ammeter. The value of S is given as

S =  =  = 10 mΩ

Hence, a shunt resistor of 10 mΩ is to be connected to galvanometer to convert it to an ammeter.

Explore exams which ask questions on Physics Ncert Solutions Class 12th

Select your preferred stream

qna

Physics Ncert Solutions Class 12th Exam

Student Forum

chatAnything you would want to ask experts?
Write here...
